PLEASE NOTE: An EVP CodeShooter or Maptuner Flashing Device is required for all Paragon Turbo Systems. If you do not currently own a CodeShooter or Maptuner Device, please ensure you select one of the options below.
The next evolution of side-by-side turbochargers has arrived. New Paragon P46 Turbo Systems for Maverick X3 Turbo RR deliver the ultimate white-knuckle riding experience whether pounding sand in the dunes or desert, smashing the trails, or battling for bragging rights on the strip. Ideal for 350-400 HP builds, the Paragon 46mm turbo delivers instantaneous spooling, mind-bending top-end power, battle-tested durability, and a no-compromise approach to overall design, fit and finish. All standard-issue features that make the full lineup of EVP Paragon Turbochargers unlike anything available in the market today.

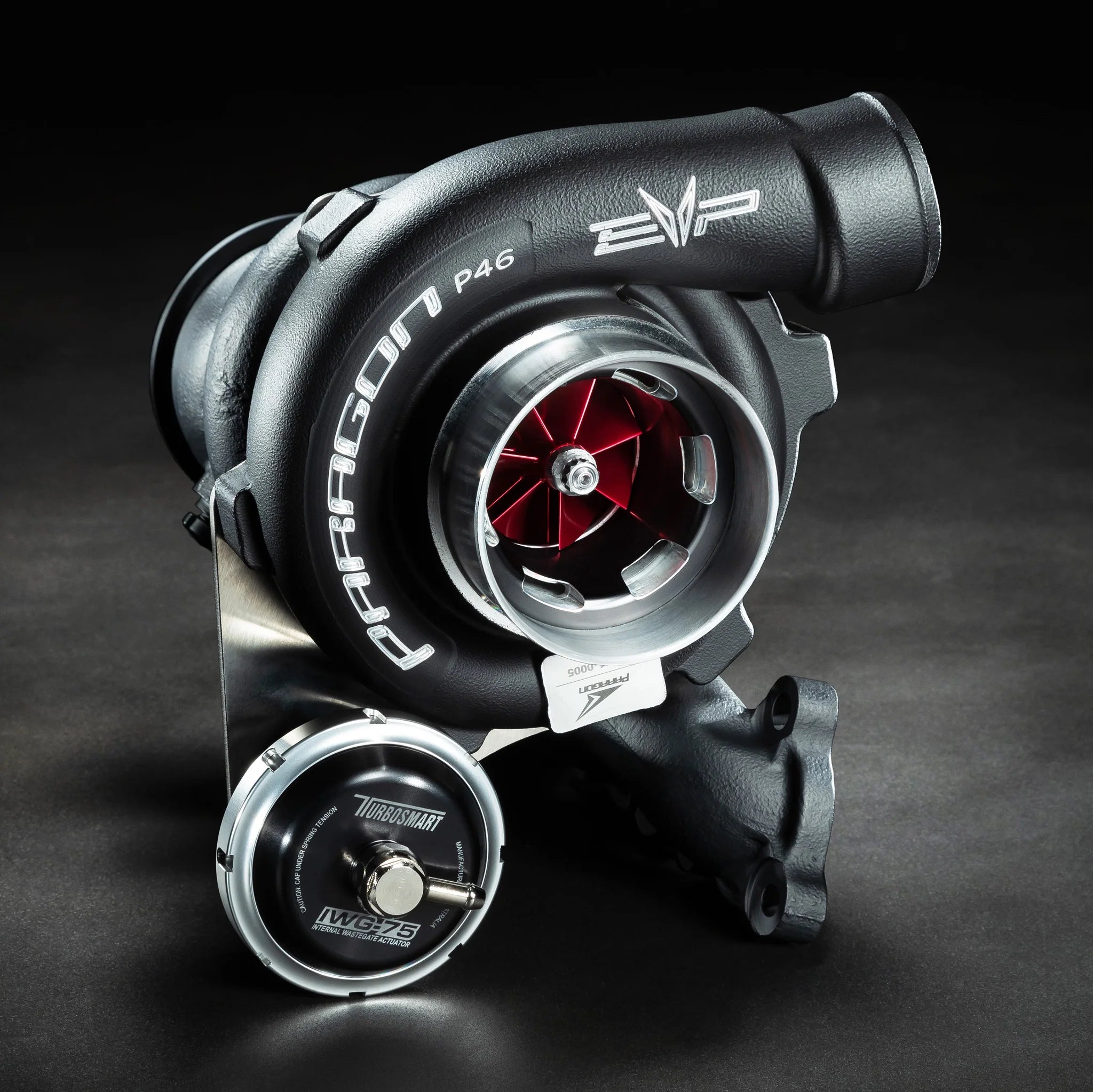

PARAGON 46MM FEATURES:
- 46mm (Red) compressor with 42mm turbine for instantaneous spool time and insane top-end power
- CNC-ported inlet cover helps prevent turbo surge and maximize efficiency
- Inconel turbine wheel and wastegate flapper valve
- Powder-coated compressor cover with billet insert and anodized compressor wheels
- Ceramic ball bearing CHRA for instant spool, long life, and high durability under extreme boost pressure
- Ceramic-coated exhaust housings retain exhaust energy, which improves turbo response time and minimizes heat output

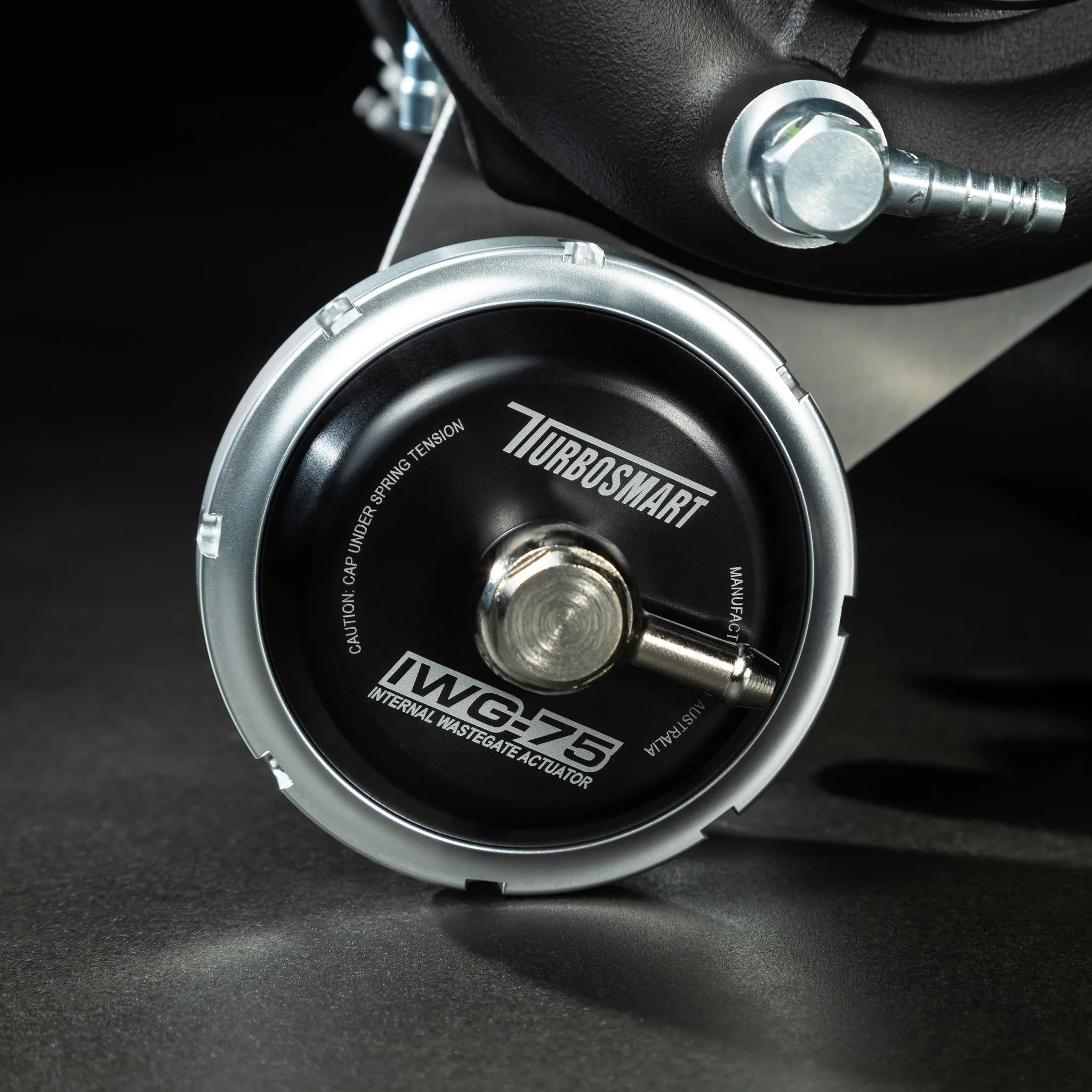

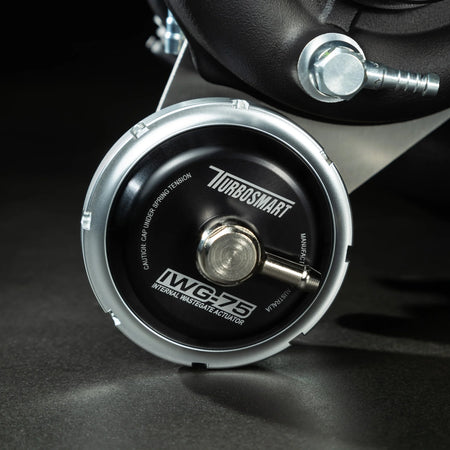

- Turbosmart wastegate actuator with an easily adjustable turnbuckle
- Industry exclusive 1-year warranty (excludes race turbochargers)

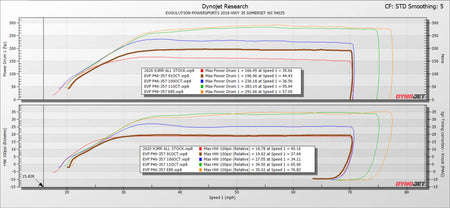

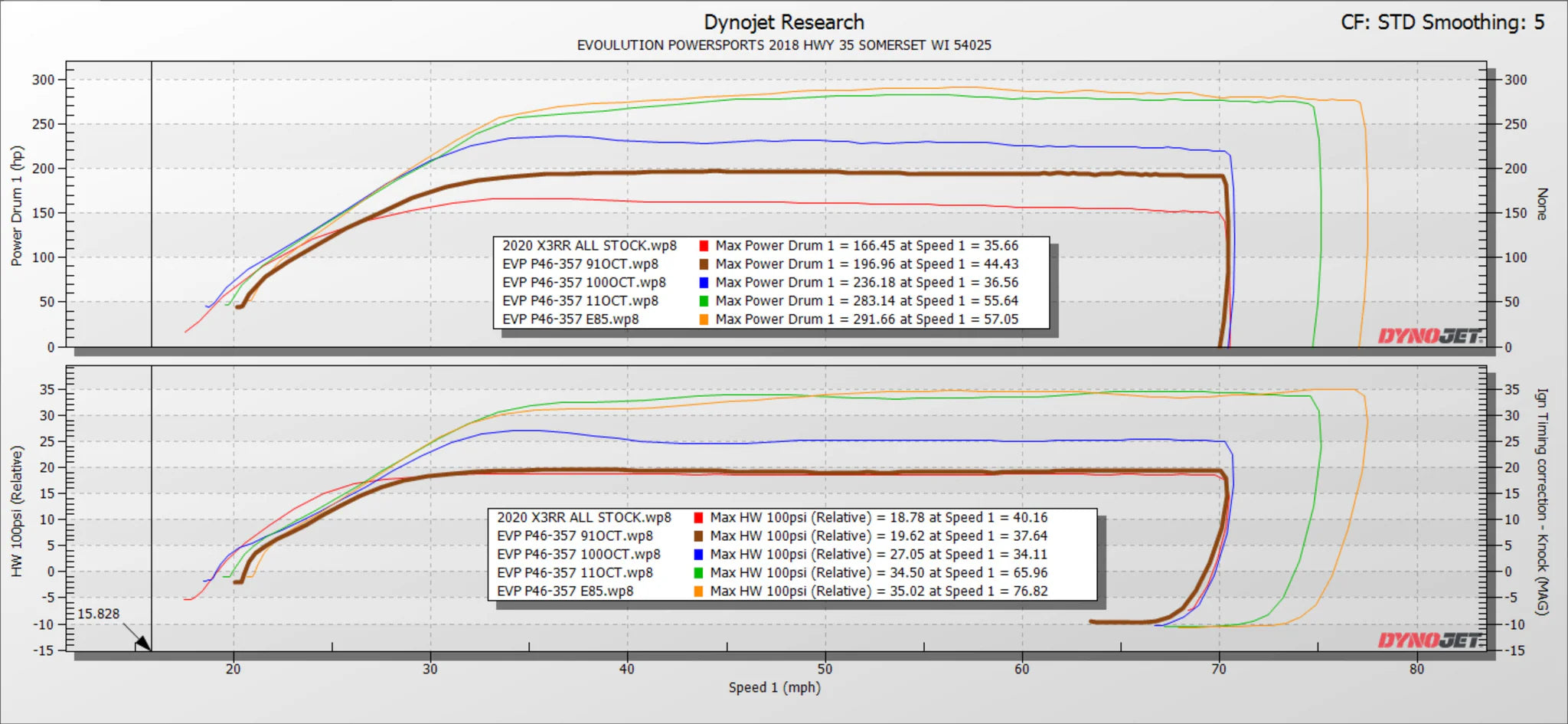

POWER LEVEL: P46-357 |
||||
---|---|---|---|---|
FUEL TYPE |
Boost (PSI) |
WHP |
CHP (approx) |
AVAILABLE |
91 |
19 |
190 |
230 |
2600, 2800 |
100 |
25 |
230 |
282 |
2600, 2800, 3000 |
110 |
34 |
282 |
343 |
2800, 3000, 3300, 3600, 4000, 4500 |
E85 |
34 |
291 |
356 |
2800, 3000, 3300, 3600, 4000, 4500 |
Do you already own an EVP part from this turbo kit? If so, contact us directly to custom build your order today at (435) 781-8818 or at rrmotorsports8818@gmail.com.
Optional Launch Control Upgrade: Build boost from a standstill and fire off the line like a bullet with EVP's exclusive Paragon 2-Step Launch Control upgrade! Our exclusive Launch Control strategy has been completely revamped for the new Paragon kits for better off-the-line acceleration!
EVP DISCLAIMER: Clutching your vehicle is mandatory with all EVP turbo systems. It is up to the customer to ensure the vehicle is equipped with the proper clutching requirements. To shop clutching for your vehicle, PLEASE CLICK HERE.

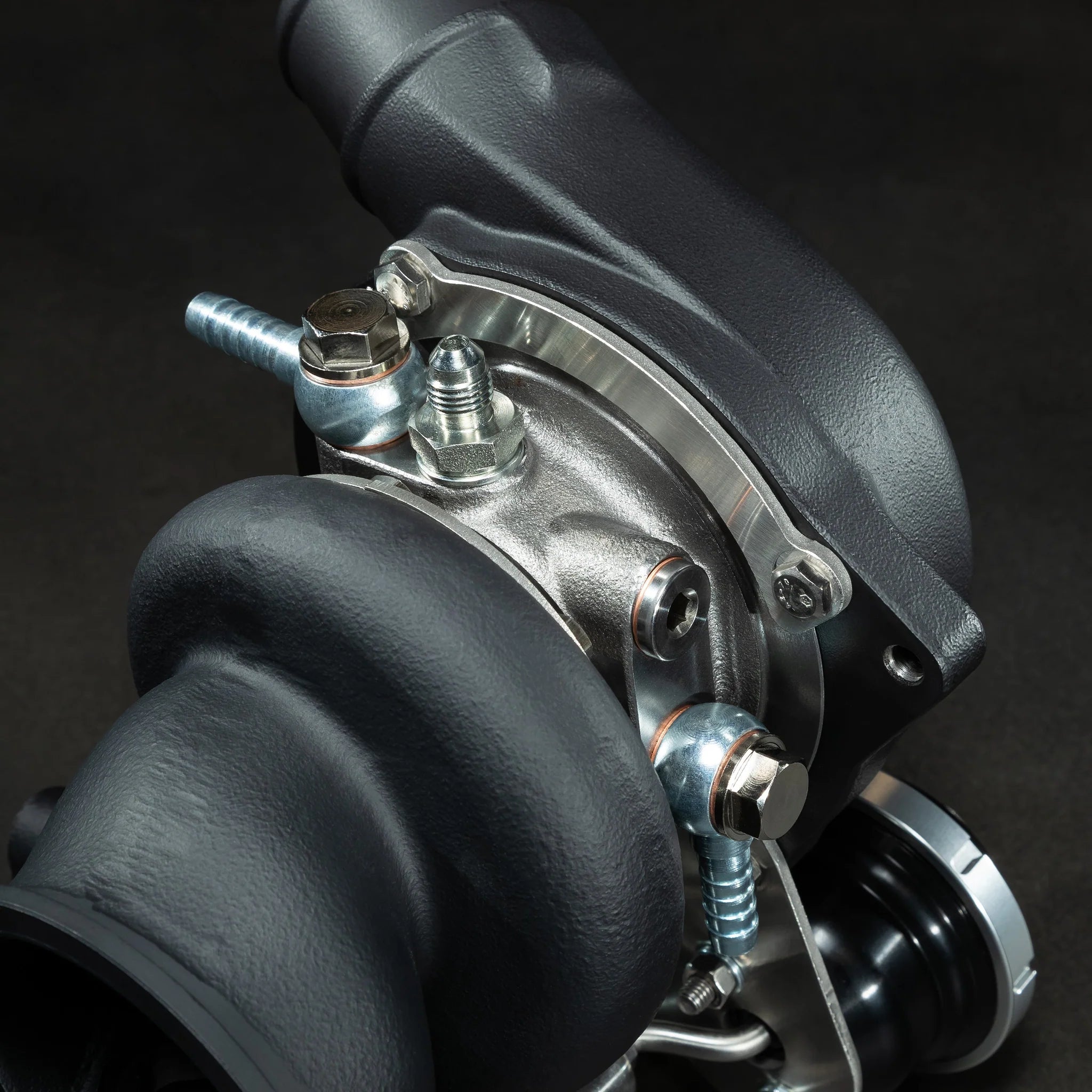

Paragon turbochargers are built to the highest standards. The rotating assemblies are VSR balanced at over 100,000 RPMs, which provides stability and durability at high boost. The exhaust housings are ceramic coated to maintain exhaust velocity and keep radiant heat in check. Each compressor wheel is color anodized for style, durability, and easy identification. The compressor housings are powder coated to maintain their appearance no matter what you put your SXS through. Every internally wastegated turbocharger has a Turbosmart wastegate actuator with an easily adjustable turnbuckle for quick adjustments. Lastly, every Paragon turbocharger is serialized and carries an industry exclusive 1-year warranty (excludes custom race turbochargers).

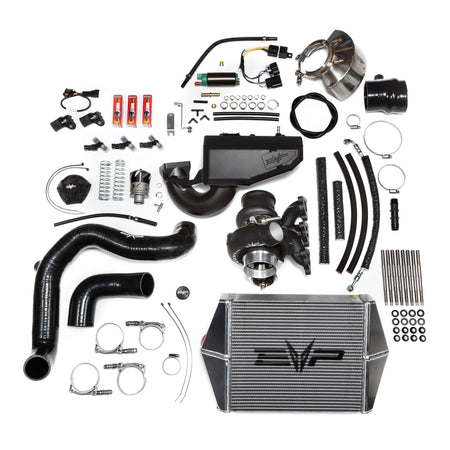

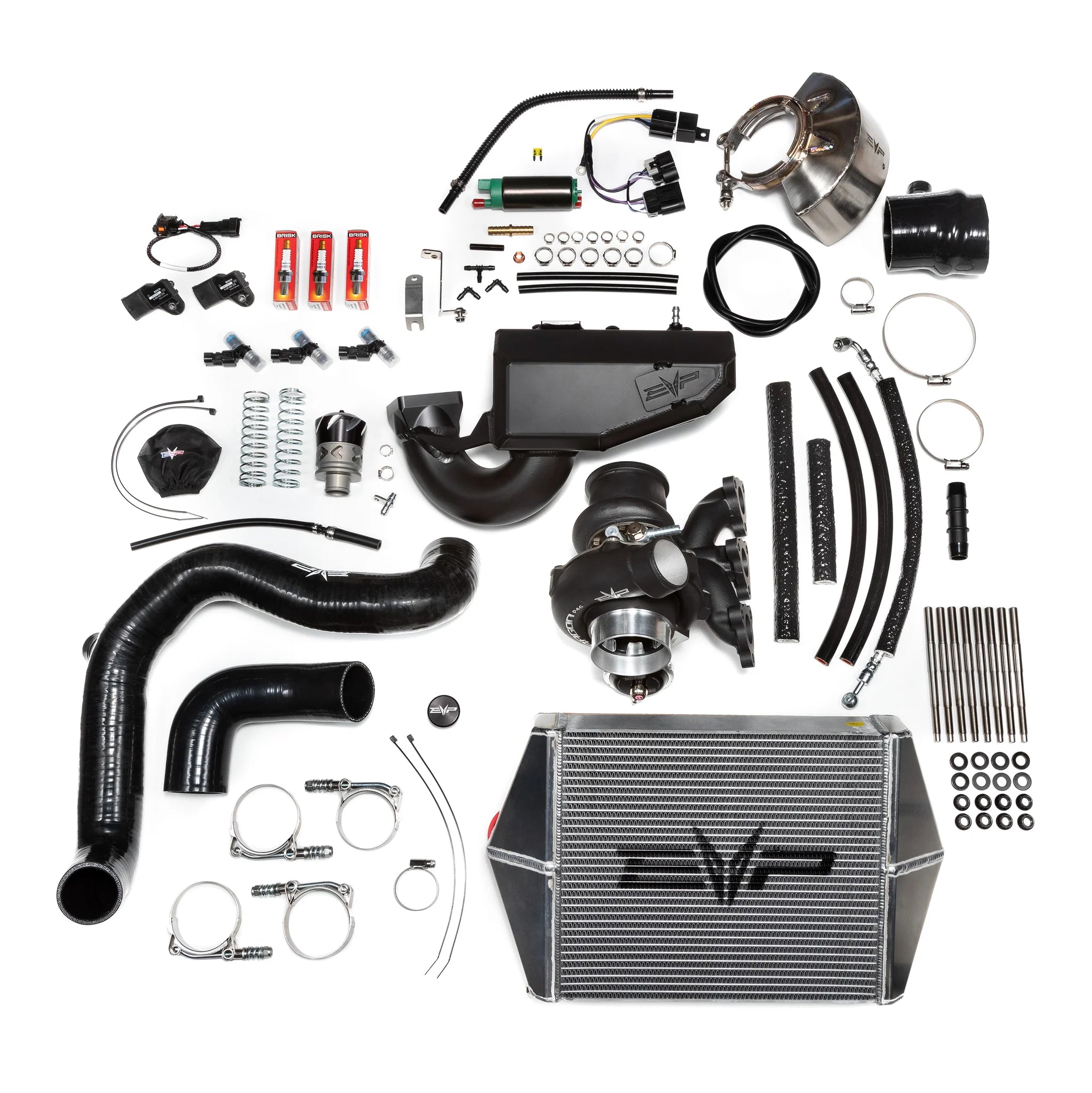

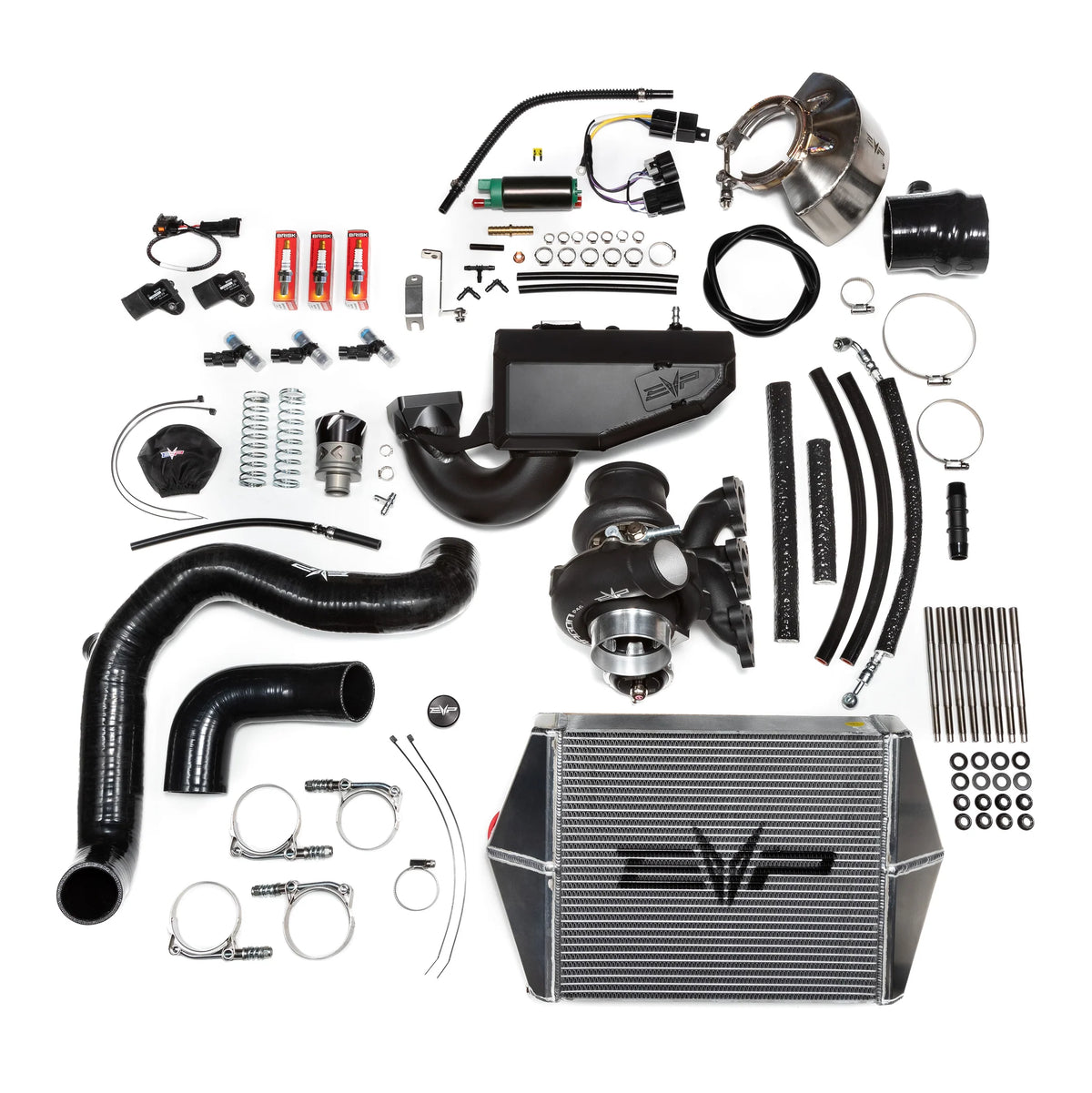

PARAGON P46-357 KIT INCLUDES:
- EVP X3 Blow Off Valve 2.0 (BOV) Kit
- EVP 2020+ X3 Paragon Charge Tube Kit
- EVP 2020+ X3 Turbo Race Intercooler
- EVP Torrent-F Intake Plenum, Black Ceramic
- EVP X3 Paragon V-Flow Intake Kit
- EVP 340LPH Fuel Pump Kit for X3
- EVP X3 1300CC Injectors (Set Of 3)
- EVP 4 Bar MAP Sensor Kit for X3
- EVP X3 ME17 Paragon 46/42 Red Turbocharger Assembly
- EVP XR Series Custom age 625 Head Stud Kit 9MM-10MM
- Maverick X3 Turbo Replacement Spark Plugs
- Full hardware kit for installation
2020 Can-Am Maverick X3 Turbo RR
Instructions: P46-357 Turbo System for 2020 X3 Turbo RR
